Low-cost water purifiers use chip packets to kill off dangerous bacteria

Armed with plywood, a glass tube and some empty chip packets, mechanical engineering students from the University of Adelaide have developed a low-cost water purification system capable of killing off harmful bacteria. The solution is designed for remote communities in Papua New Guinea (PNG), an area where water is particularly susceptible to pathogen infestation.

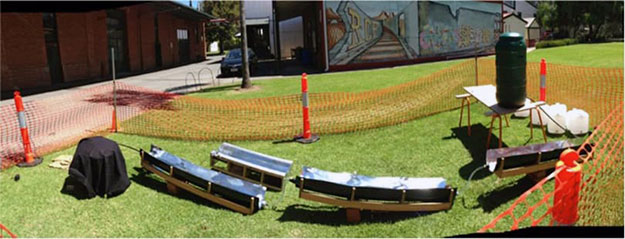

chip_packet_water_purifier-4The water treatment system was developed in collaboration with ChildFund Australia, an organization dedicated to promoting children’s rights across the globe. One of the team’s main design focuses was to provide a solution that could easily be adapted by local communities in PNG. As such, it was critical that the materials were both cheap, light and accessible.

“Our priority was to develop a system with, and not just for, the end-users,” says Dr Cristian Birzer, lecturer at the School of Mechanical Engineering and supervisor of the project. “We wanted something where we could provide design guidelines and let the local communities build and install their own systems using readily available materials that could be easily maintained and replaced.”

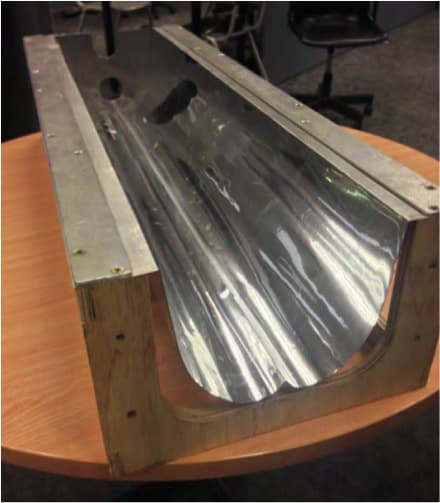

As a starting point, the students built a system using high quality materials. The water runs through a piece of piping, which rests in a trench-shaped structure coated in reflective metal. This material directs the sunlight onto the water, harnessing its UVA radiation to kill off pathogens. They then replicated this model with the plywood, glass tube and high-density polyethylene plastic sheeting coated in the chip packet wrapping, shaped to capture the maximum amount of sunlight and direct it onto the water running through the glass tube.

chip_packet_water_purifier-1The students found that the rudimentary version worked just as well as the high-quality one, and was a very cost-effective solution at AU$67 (US$60). In testing, the system was able to reduce high amounts of E-coli to undetectable levels in under 30 minutes.

“The system can successfully treat close to 40 liters (10.5 gal) in four hours and the beauty is that it’s designed to be modular, so more modules can be added for greater quantities of water,” says Dr Birzer.

chip_packet_water_purifierThe University of Adelaide students Michael Watchman, Harrison Evans, Mark Padovan and Anthony Liew took out the National Student Environmental Engineering and Sustainability Award from Engineers Australia’s Sustainable Engineering Society for the project.

Their research is set to be published in the journal Procedia Engineering.

Source: http://www.gizmag.com/
