Introduction To Water Wheels

zuppingerA Water wheel (or Waterwheel) is a system for extracting usable power from the water flowing in a river or stream. Along with windmills, water wheels have being powering the milling of flour and other industry for hundreds of years. Waterwheels are still in common use in Nepal (25,000+), and India (over 200,000 waterwheels). Water wheels come in two main flavours: undershot, and overshot.

Undershot Waterwheels

Historically the undershot water wheel was the commonest as it is the cheaper and simpler to build. It was used frequently by the Romans and the undershot water wheel is sometimes known as a Vitruvian water wheel after the Roman engineer Vitruvius. In this system the wheel is simply placed over a fast flowing river. The water hits paddles which protrude all around the wheel and therefore turns the wheel. This system can only be used where the flow of water is very fast as little of the energy of the water (around 20%) is used. Click here to read our article on run of river hydro power.

Overshot Waterwheels

The overshot water wheel is more complicated, but much more efficient as almost all of the water flow is used for power. A dam and a pond or lake are built and used to channel water to just below the top of the wheel where it collects in buckets. The weight of the water in the buckets turns the wheel as the buckets on the otherside are empty and therefore lighter. When a filled bucket has caused the wheel to rotate, and that bucket has reached the bottom of the wheel, it is inverted and the tail water falls out. That bucket the continues around the wheel empty until it gets back up to the top to be filled again. Around 70% of the energy carried by the water is used in an overshot waterwheel.

Alternative Waterwheels

wheelshots

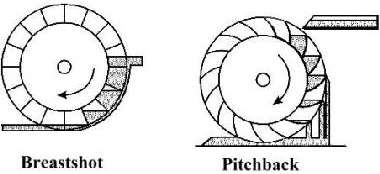

Other alternatives are the breastshot waterwheel in which the water arrives at the wheel at axle height (rather than at the top in the case of an overshot), or most efficient of all, the pitchback waterwheel in which the water does not flow over the top of the wheel, but actually flows into the wheel and turns the wheel in the opposite direction. It’s difficult to explain in words, so here are a couple of useful diagrams:

Electricity from Waterwheels

Historically waterwheels were used to turn milling stones and other mechanical tasks. However they are not being reconsidered for the generation of electricity. A waterwheel for example has a lot less environmental impact than hyroelectric power generation since rivers do not need to be diverted, and the pressure of the water is not increased so fish are less likely to be injured or killed. The costs per Watt of power is just Ј3 to Ј7.50 (according to Southampton University) which is comparable to the costs of solar photovoltaic cells (however a waterwheel can generate power 24 hours per day unlike solar, and therefore can be much cheaper overall).

More Information

Click here to read our article Calculation of Hydro Power which enables you to work out the amount of power available to be exploited by a waterwheel. This article: Building a Waterwheel tells the story of a DIY waterwheel constructed in the UK for generating electricity, and this article: Electricity from Waterwheels has a little bit more information about that subject.

Source: http://www.reuk.co.uk/
